LED Die Attached Silicone
NTC LED Die Attached Silicone is a high Thixotropic Index, fast curing and long working life adhesive. It has high adhesive strength and good transparency.
| DAA-6260 | DAA-6270 | ||

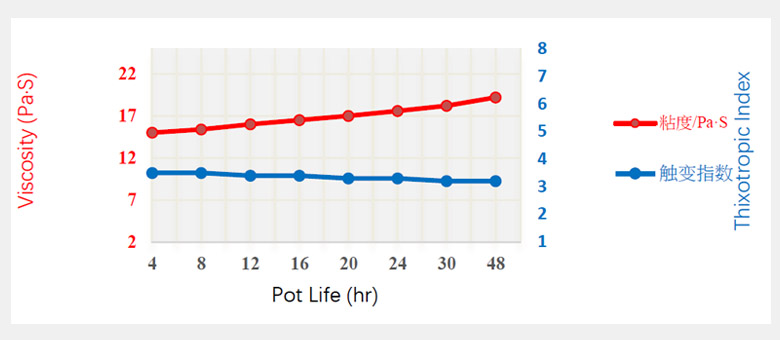

| 粘度(Pa.S) | Viscosity(Pa.S) | 8-13 | 7-11 |
| 觸變指數（1.5/15） | Thixotropic Index | 3-6 | 1-3 |
| 硬度（D） | Hardness（Shore D） | 65 | 65 |
| 導熱率（W/m.k） | Thermal Conductivity（W/m.k） | 0.2 | 0.2 |
|

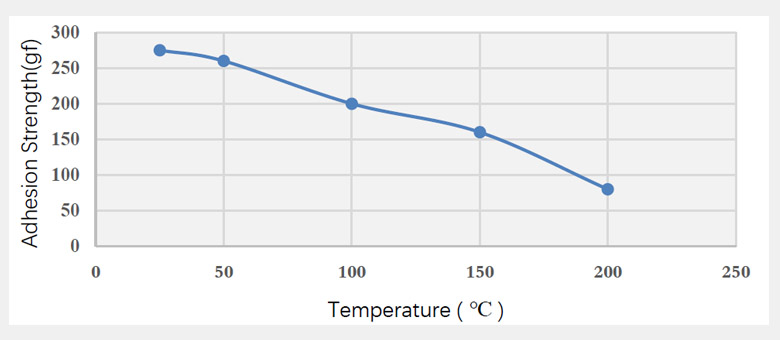

推力值（gf） Die Shear Test |
10*30mil @25℃ | 280 | 350 |
| 10*30mil @160℃ | 150 | 180 | |
| 使用時間 | Working Life | 24h | 24h |
